Descrizione
System Power
Full Speaker System Recommended Peak Power Input (Watts) (Using Pair/Full Set Of Speakers Not Necessarily Included & Appropriate Crossover) 800
Full Speaker System Power Handling RMS (Watts) (Using Pair/Full Set Of Speakers Not Necessarily Included & Appropriate Crossover) 400

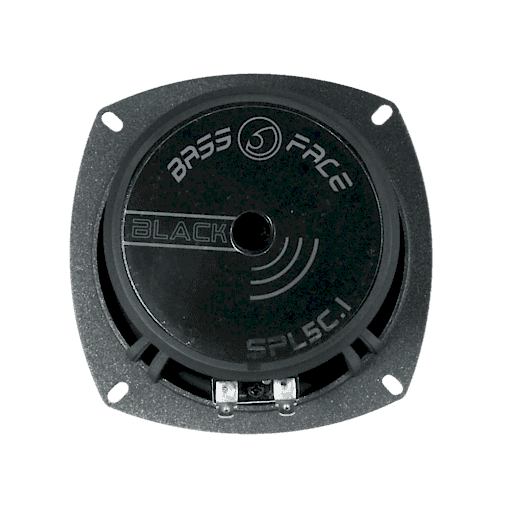

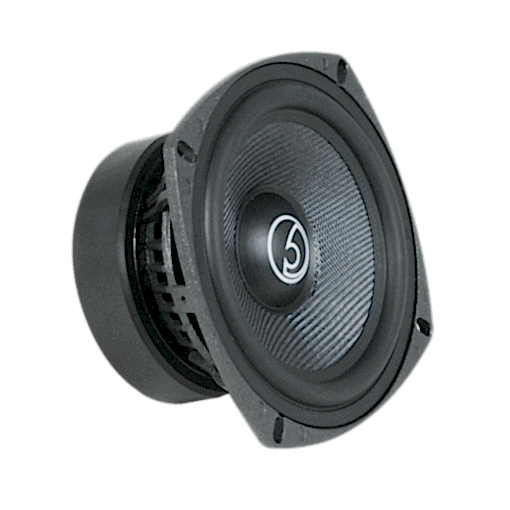

Speaker Data
Speaker Maximum Recommended Power (Watts) (One Speaker, Using Appropriate Crossover) 250
Speaker Power Handling RMS (Watts) (One Speaker, Using Appropriate Crossover) 125
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 1%THD) 100
Overall Diameter With Lugs (mm) 150

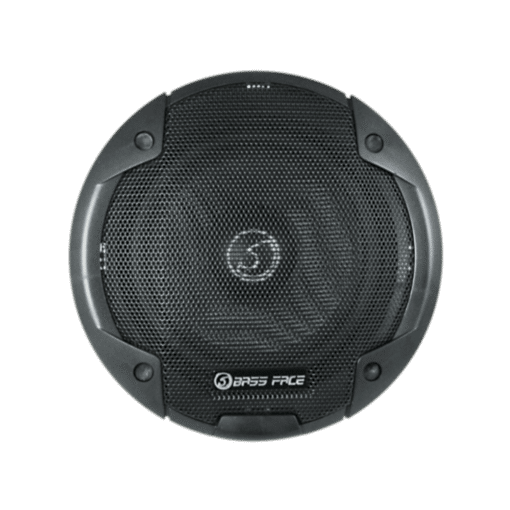

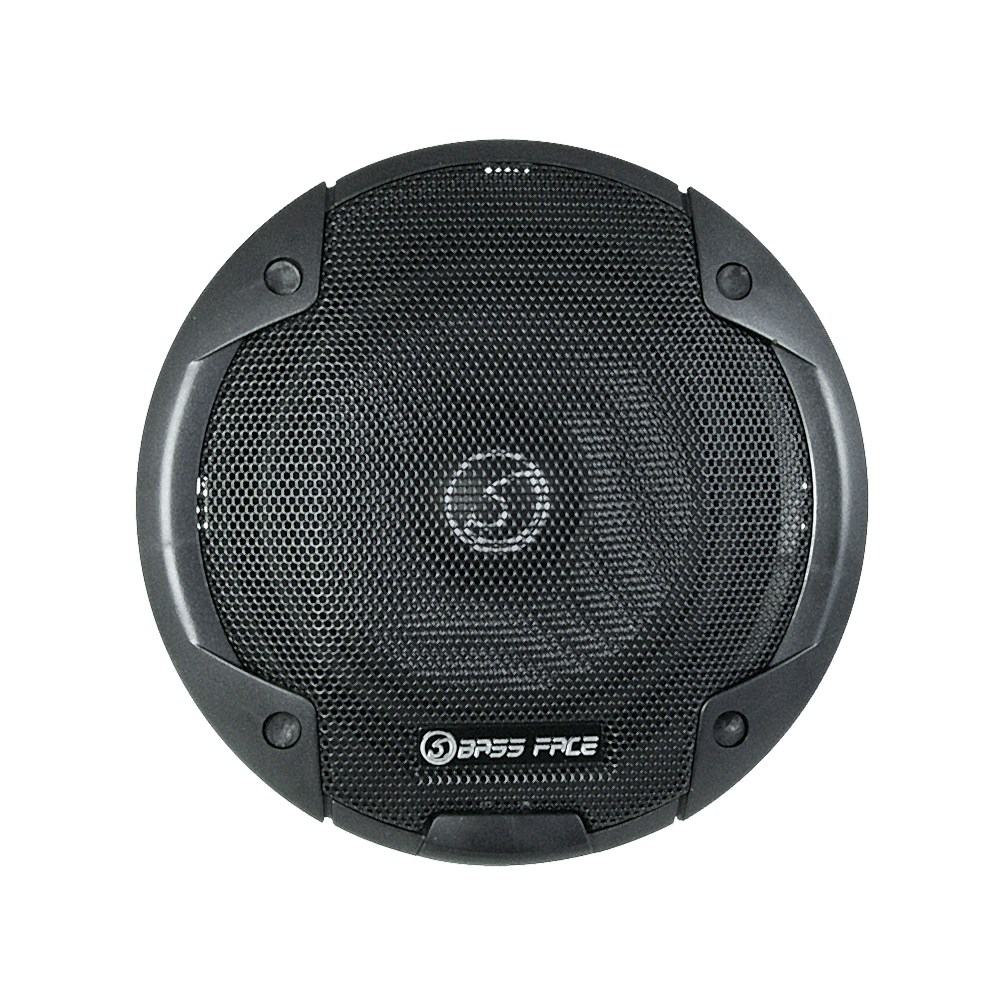

Overall Diameter With Grilles (mm) 160
Overall Diameter (mm) 150

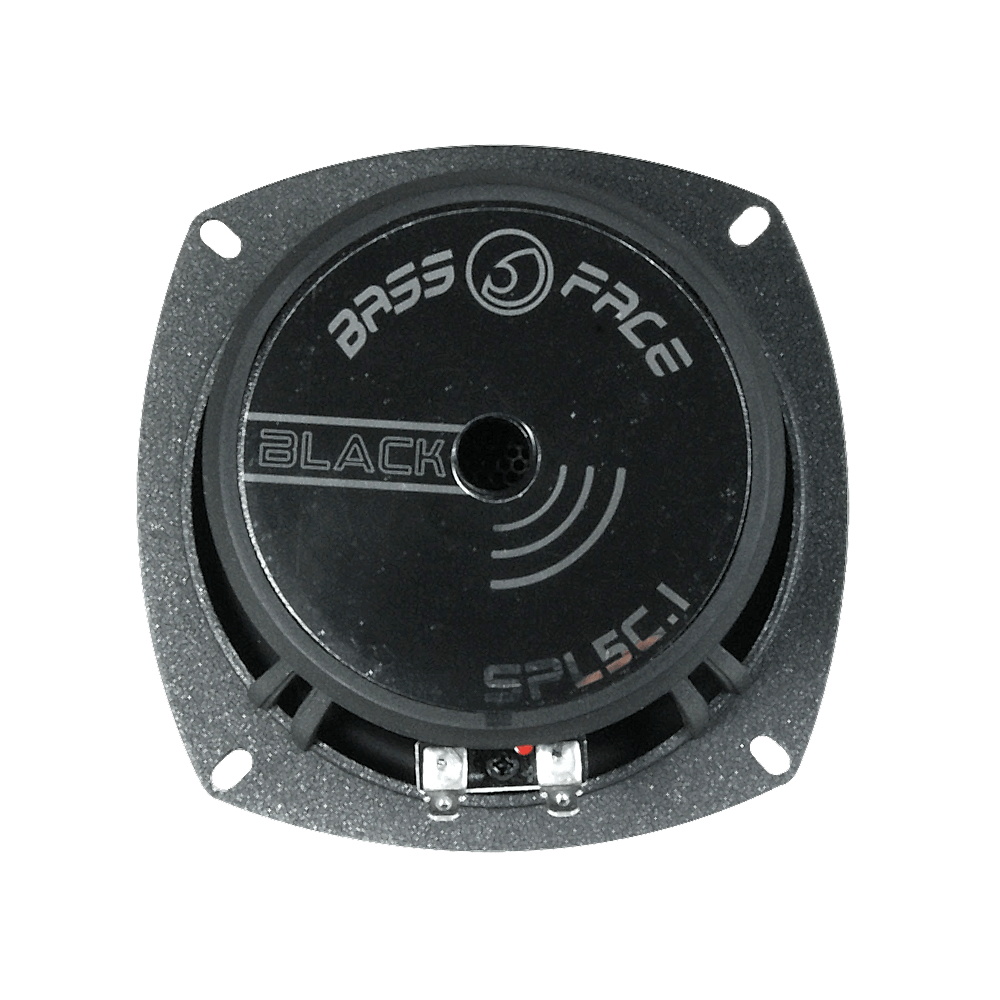

Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 95
Installation Cutout Diameter (mm) 116
Grille Depth (mm) 25
Overall Depth (mm) 70
Mounting Depth (mm) 64
Front Protrusion From Mounting Plane (mm) 6
System Frequency Response (Hz) (Indicative Of Usable Range But Not Suitability) 45-23000
Impedance (Ohm) (Nominal) 4
Sensitivity (db/1Wm) 97
Recommended Cable PSC16.2

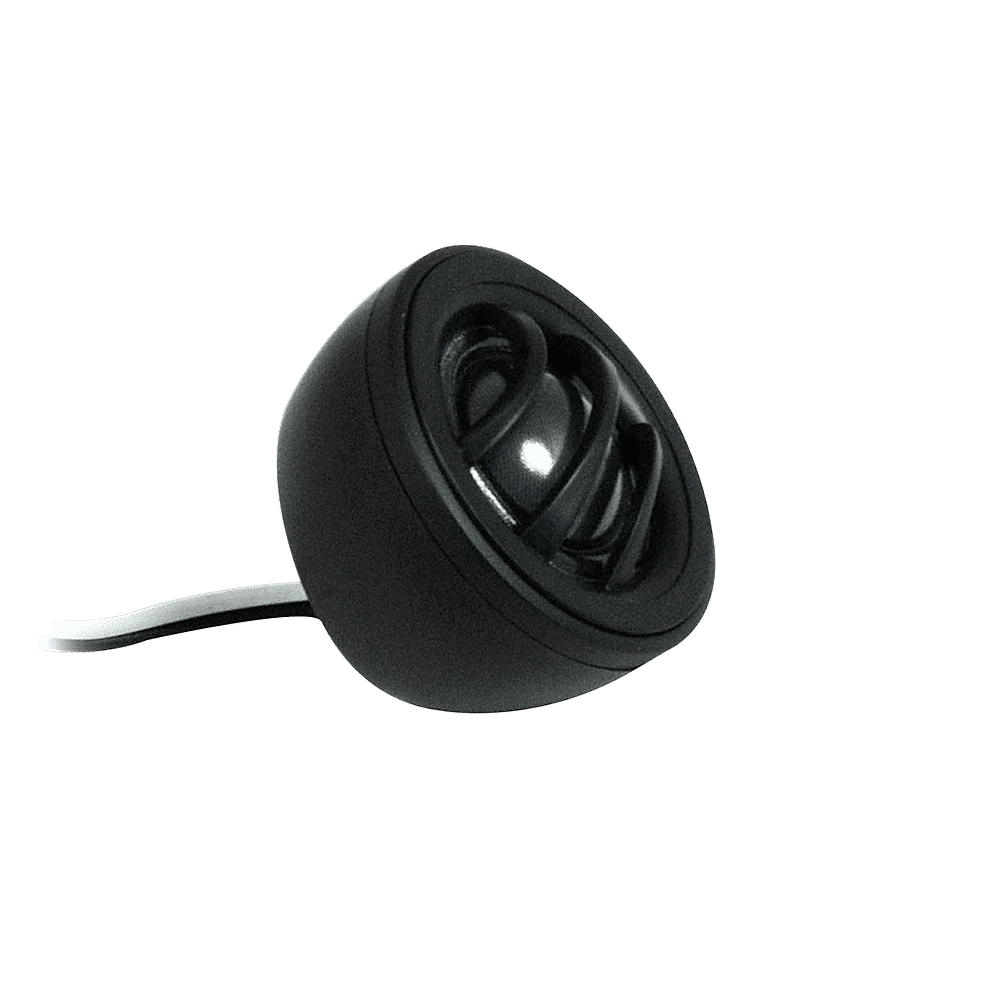

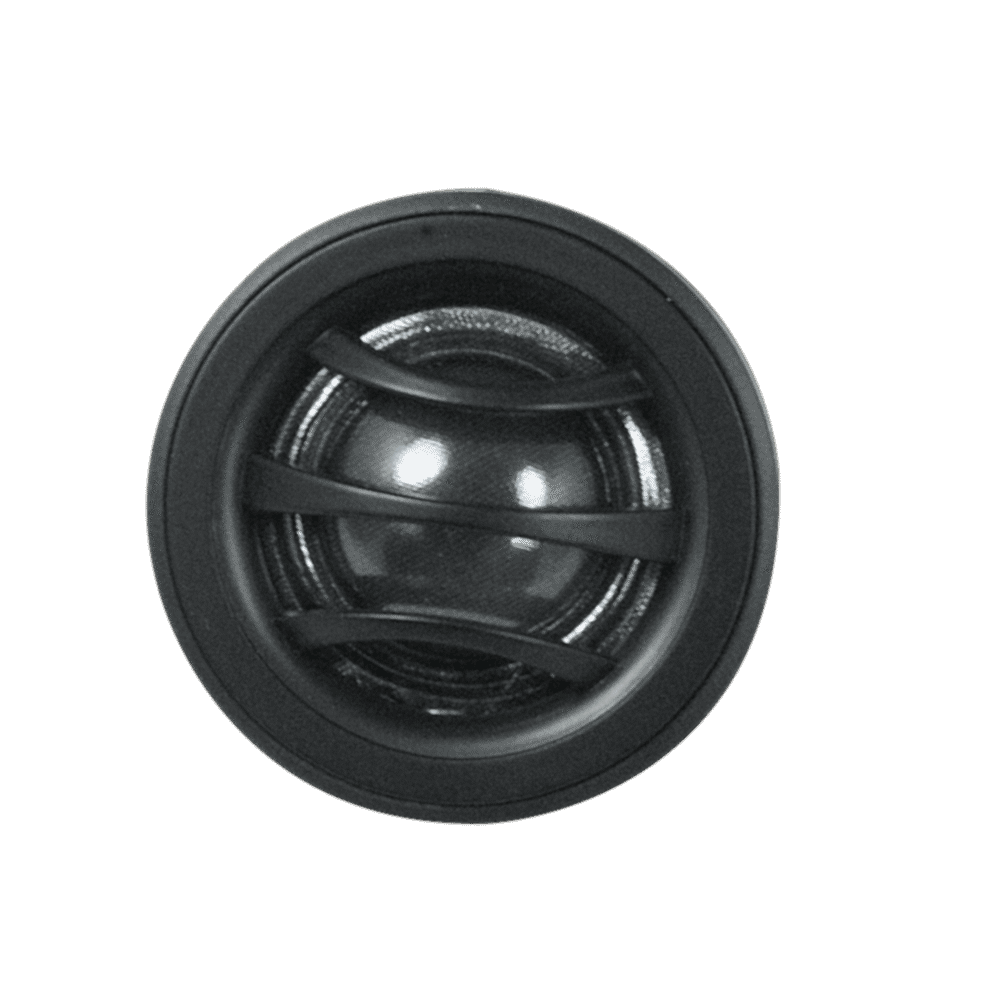

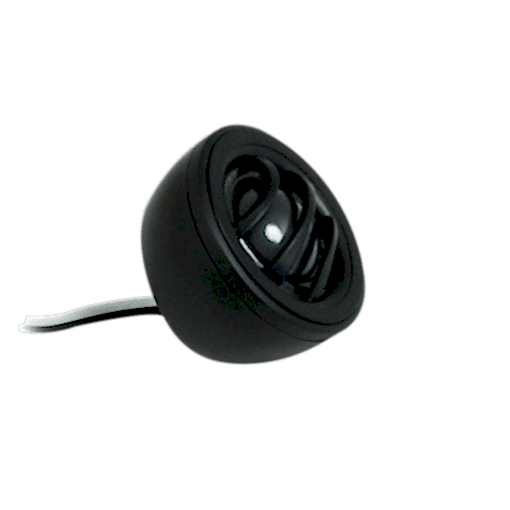

Tweeter Data
Recommended Cable PSC18.1
Overall Depth (mm) 30
Mounting Depth (mm) 17
Front Protrusion From Mounting Plane (mm) 13
Overall Diameter (mm) 55
Installation Cutout Diameter (mm) 50
Magnet Type Neodymium
System Maximum Power (Watts) (Using Pair Of Tweeters Not Necessarily Included) 300
System RMS (Watts) (Using Pair Of Tweeters Not Necessarily Included) 150
Frequency Response (Hz) 3500-23000
Impedance (Ohm) 4
Technical Highlights

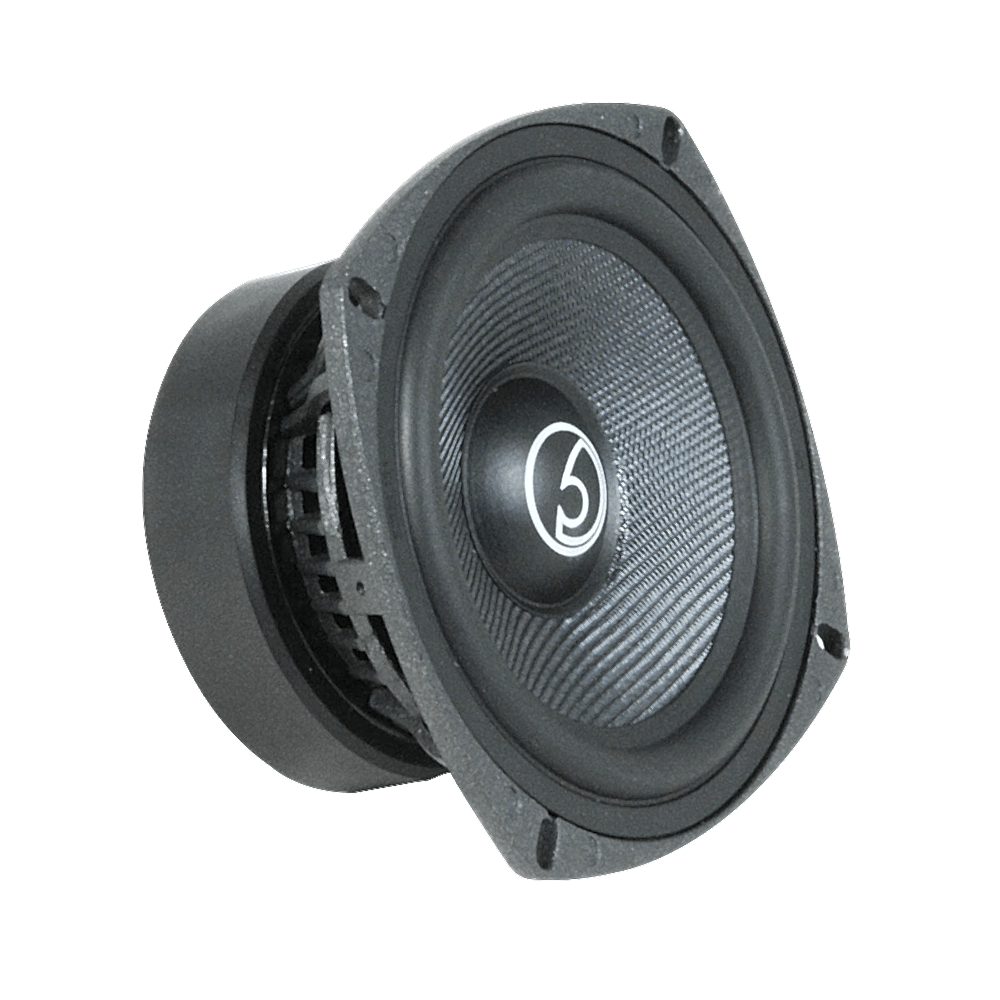

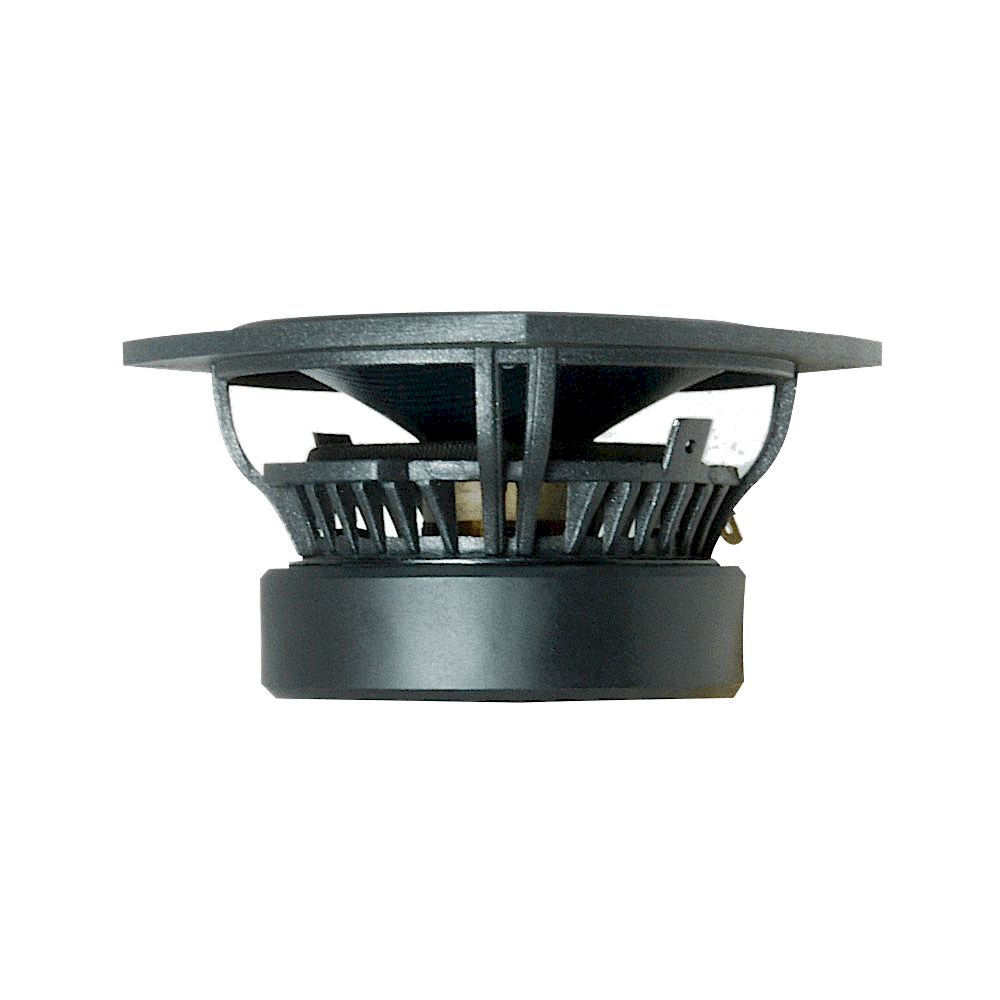

Cast Aluminium Basket Reduces Mechanical Distortion
Oversize 1.2” Voice Coil For High Power Handling
High Power Crossover With Hi-Freq Attenuation Switch
Extra VC Cooling Vents Decrease Power Compression
Woven Black Fibre Cone Provides Superior Dynamics
Large Single Roll Non Fatiguing Rubber Surround
Rigid Large Dustcap Increases Cone Stiffness
Large Clear Silk Dome Tweeter
High Magnetic Flux Motor Design
Sibilance Minimising Tweeter Protection
Engineered For SQ OEM Location Install Use
Key Facts
Product Category Coaxial & Component Speakers
Version 1
Series Black
Barcode 617529407946
Production Status Current
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 2700
Complete Product Pack Weight (g) 3580
Retail Carton L (mm) 390
Retail Carton W (mm) 290
Retail Carton H (mm) 105
Warranty (Months) 12
Sold As Kit

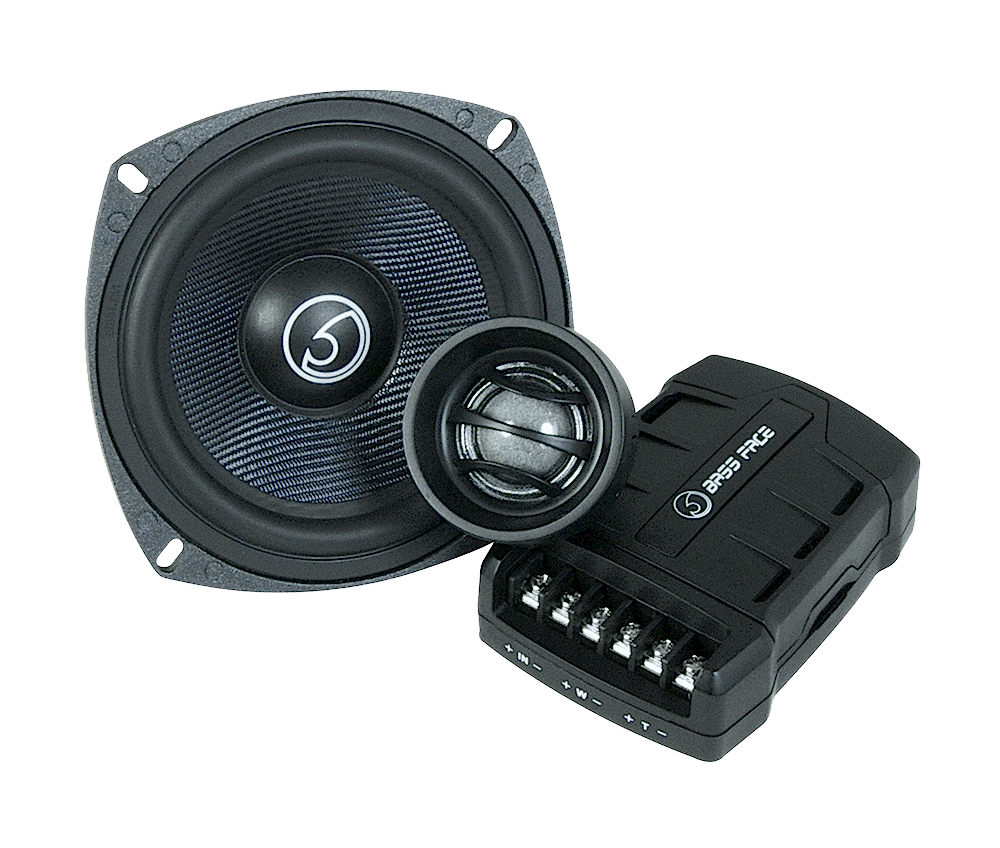

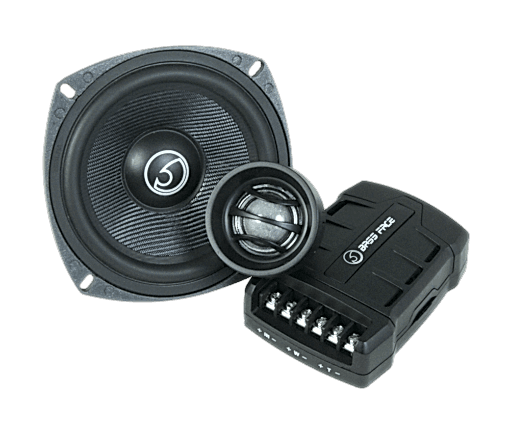

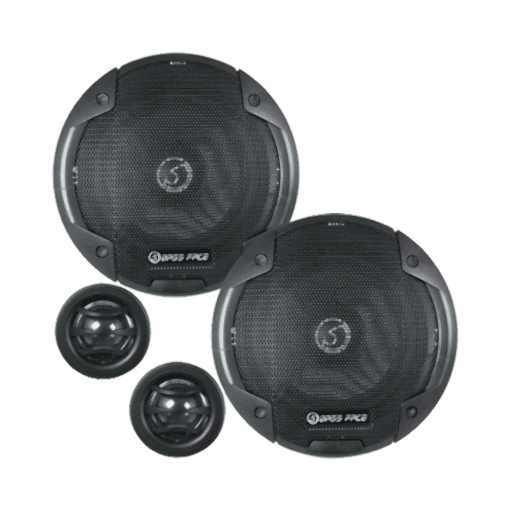

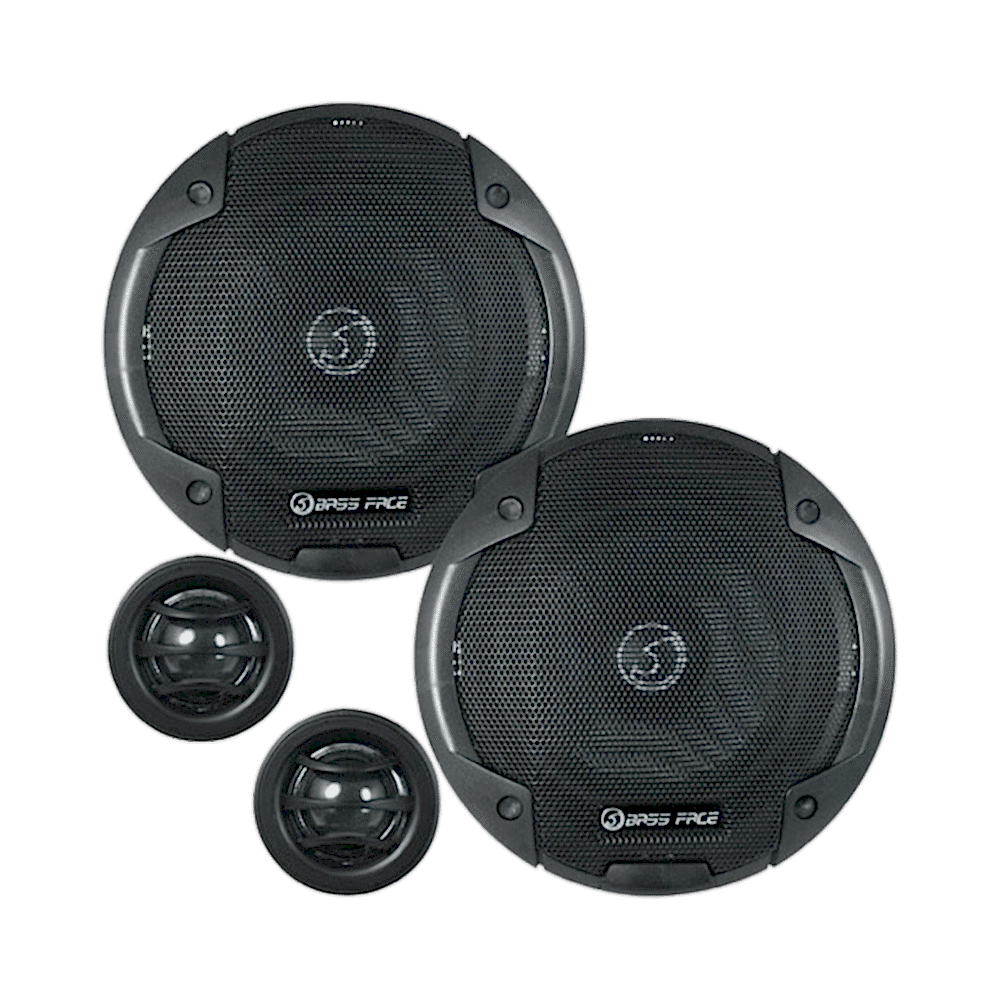

What’s In The Box?
2 x BLACKSPL5C.1 Midbass Speakers

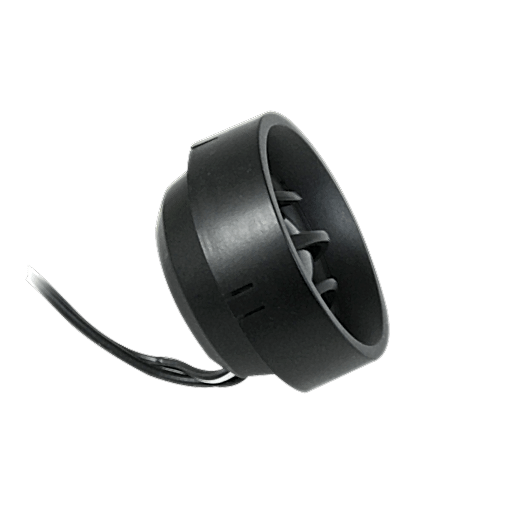

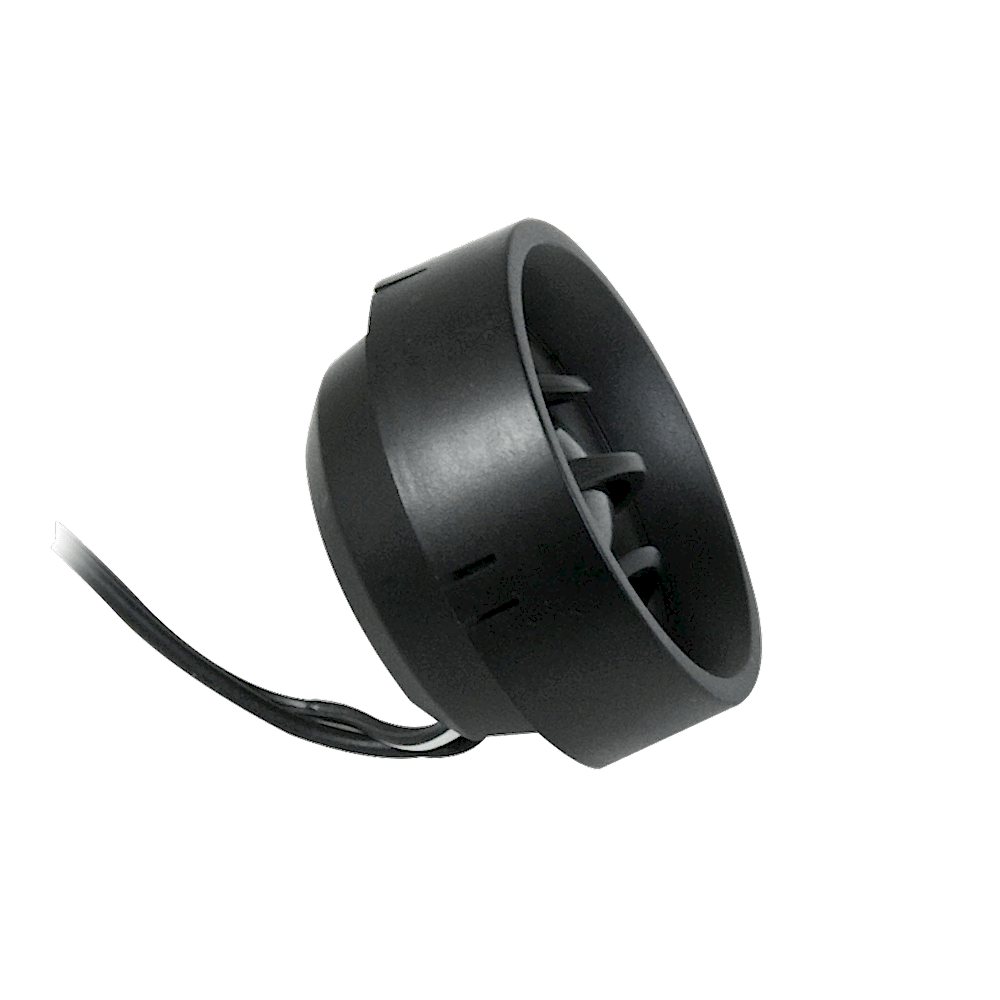

2 x BLACK Tweeter Units Including Housing
2 x Crossover
2 x 1m Cable for Midbass
2 x 2m Cable
8 x Self Tapping Screws
8 x Speed Spire Nuts
Grill Glue
