Descrizione
AMPLIFIER DATA
Genuine Useable RMS Power, 4Ohm Bridge (Watts), < 1%THD, 14v 2500×1
Genuine Useable RMS Power, 2Ohm Bridge (Watts), < 1%THD, 14v 4500×1
Genuine Useable RMS Power, 1Ohm Bridge (Watts), < 1%THD, 14v 7500×1
Frequency Response (Hz) 10-250
THD Continuous 4 Ohm 1Khz/100Hz (%) <0.1 Signal To Noise Ratio (db) >97
LPF (Hz) 35-250
Bass Boost (Db) 0-9
Boost Frequency (Hz) 50
Subsonic Filter (Hz) 10-50
Audio Signal Input Voltage (V) 0.2-6
LPF Slope (Db/Oct) 12
Subsonic Filter Slope (Db/Oct) 12
Amplifier Topology Class D
Amplifier Strappable? Not Recommended – No Warranty 1Ohm
Fuse Rating (Amps) USE EXTERNAL

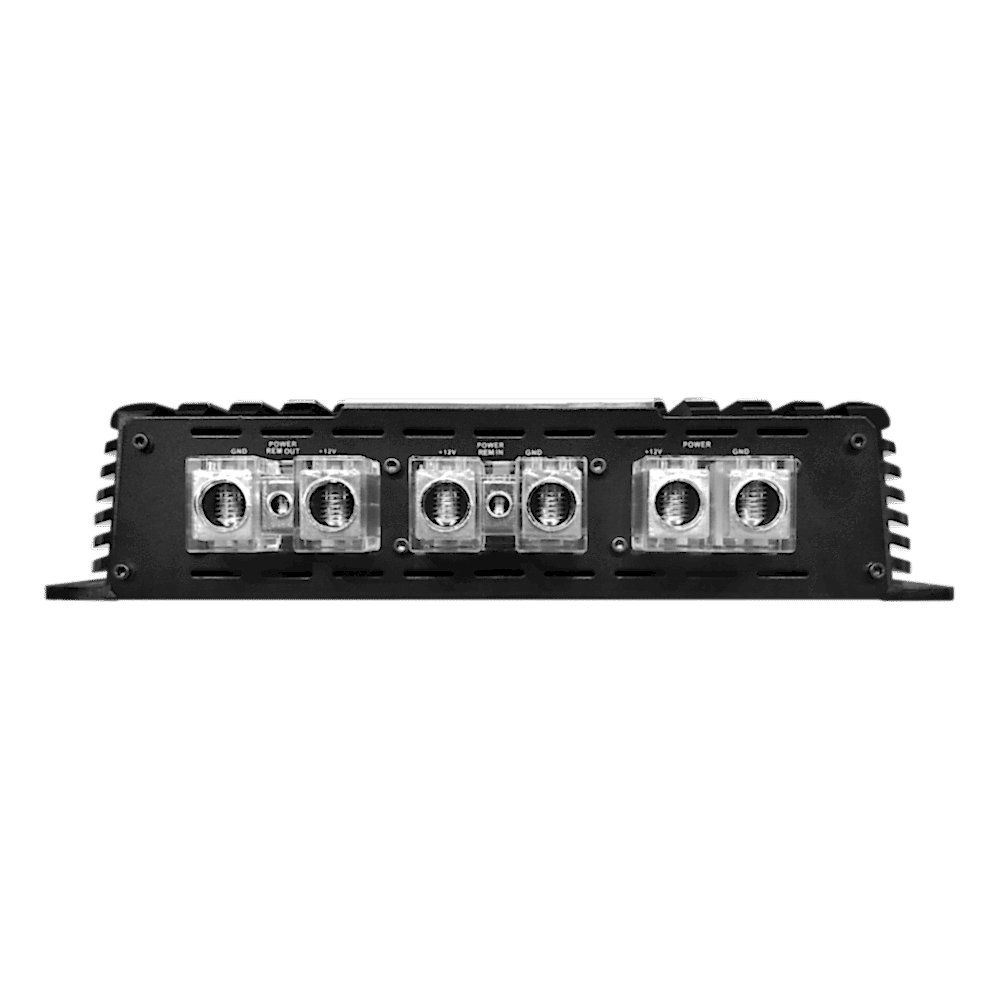

Power Wire Input Gauge (AWG) 0(x3)
KEY FACTS
Product Category Amplifiers
Version 1
Series Hammer
Barcode 680044772226
TECHNICAL HIGHLIGHTS
Very Big Version Of Our Contest Winning Mono Amplifier
Incredible Power – Fantastic Value Per Watt

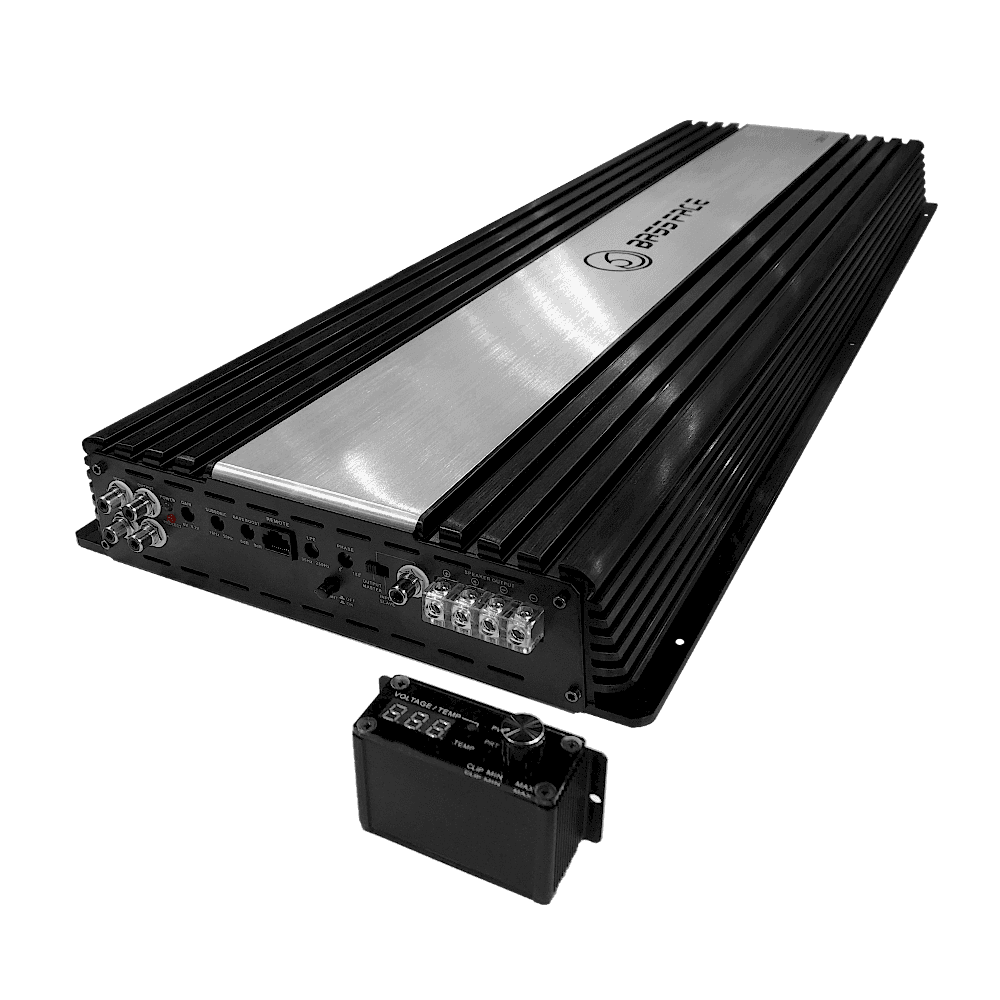

Remote control with voltage display
Highly Efficient Class D Topology
Load Optimised for Transient Stability at Low Impedance’s
T.D.O.S. Amplifier Protection Circuitry
O.P.S. Oversized Power Supply
Up To 6V Ready Pre Amp Input Stage
Low THD Audiophile Components
Variable Phase 0-180 Degrees
High Density Cast Aluminium Heatsink Body
Thermally Efficient Heatsink Coating
Variable Subsonic Filter 10-50Hz
Variable Bass Boost 0-9db
Variable Low Pass Crossover 35-250Hz
Clip Limit Control
WHAT’S IN THE BOX?

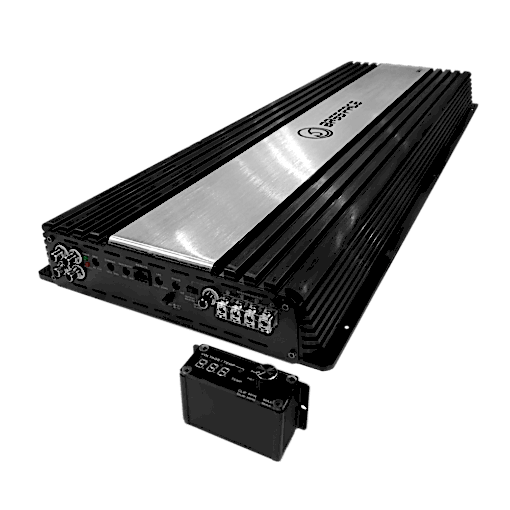

1 x High Performance Mono Amplifier
1 x Bass remote level control
1 x 5m level control cable
1 x Small Allen Key
1 x Larger Allen Key
4 x Screws
