SPEAKER DATA
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 80
Overall Diameter (mm) 167
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 100
Installation Cut-out Diameter (mm) 156
Overall Depth (mm) 68
Mounting Depth (mm) 62
Front Protrusion From Mounting Plane (mm) 4
System Frequency Response (Hz) (Indicative Of Usable Range But Not Suitability) 105-60,000
Impedance (Ohm) (Nominal) 4
Sensitivity (db/1Wm) 91.5
Total Magnet Weight (Oz) 22.5
Magnet Size (mm) 100*20
Magnet Type Y30
Magnet Qty 1
Top Plate thickness (mm) 6
Back Plate thickness (mm) 6
Voice Coil Former Spec Kapton
Voice Coil Type CCA Round Wire
Voice Coil Diameter (mm) 40
Voice Coil Internal Diameter (mm) 38.5
Voice Coil External Diameter (mm) 40
Voice Coil Winding Hight (mm) 7
Voice Coil Winding (Layers) 2
Cone Type Pressed Paper
Spider Compliance Medium
Spider Type Linear
Spider Design Single
Surround Dual Roll
Surround Material Cloth
Tinsel Wire Single
Terminal Spade
KEY FACTS
Product Category Midbass & Midrange Speakers
Version 1
Series GT
Date Added 16/11/2022
Date Modified 22/03/2023
Barcode 5060905111091
Production Status Current
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 1.35
Product Height (mm) 68
Product Length (mm) 167
Product Width (mm) 167
Complete Product Pack Weight (g) 1.5
Retail Carton L (mm) 185
Retail Carton W (mm) 185
Retail Carton H (mm) 90
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) 12
Sold As Single
TECHNICAL HIGHLIGHTS
80 WRMS Continuous Power
4 OHM SVC Motor
High Strength Y30 22.5 Oz Magnet
Copper Shorting Ring For Sound Quality
TS PARAMETERS
Test Conditions After Full Brake-In
Re (Ohm) 3.2
Lces(mH) 7.848
fs(Hz) 153
Mms (g) 7.65
MMd (g) 6.83
Cms(mm/N) 24.418
BL (T m) 4.344
Qms 8.426
Qes 0.949
Qts 0.853
Vas (Ltr) 5.564
Sd(cm2) 126.677
SPL (db/1Wm) 91.5

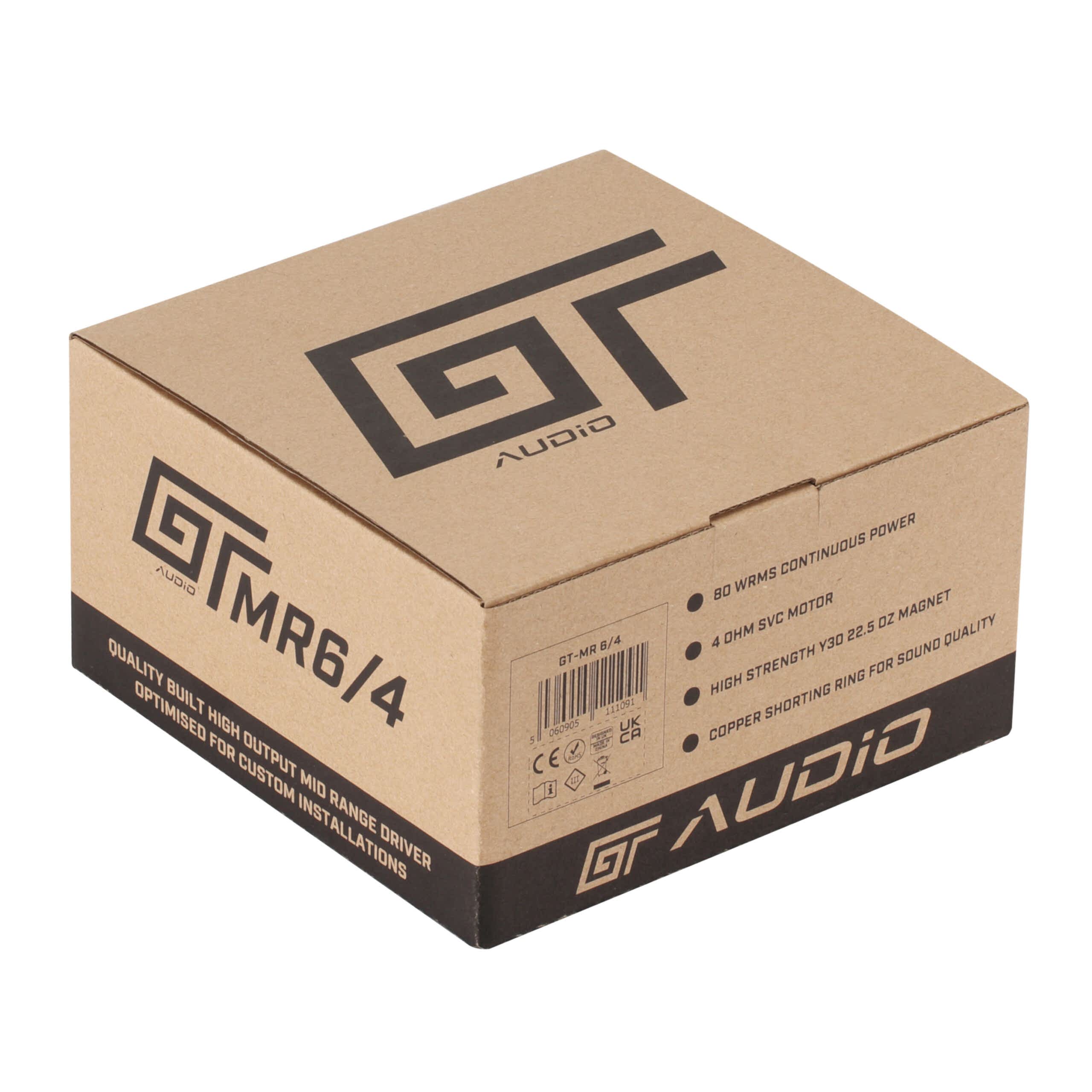

WHAT’S IN THE BOX?
1 x Midrange Driver
1 x Comprehensive Datasheet
1 x Series Window Sticker
